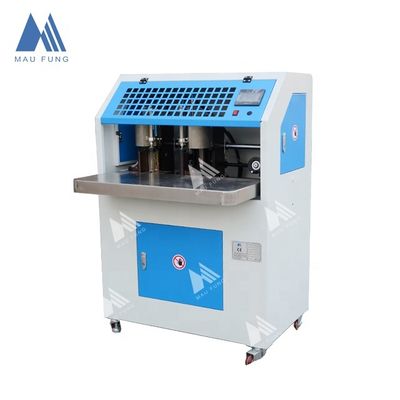

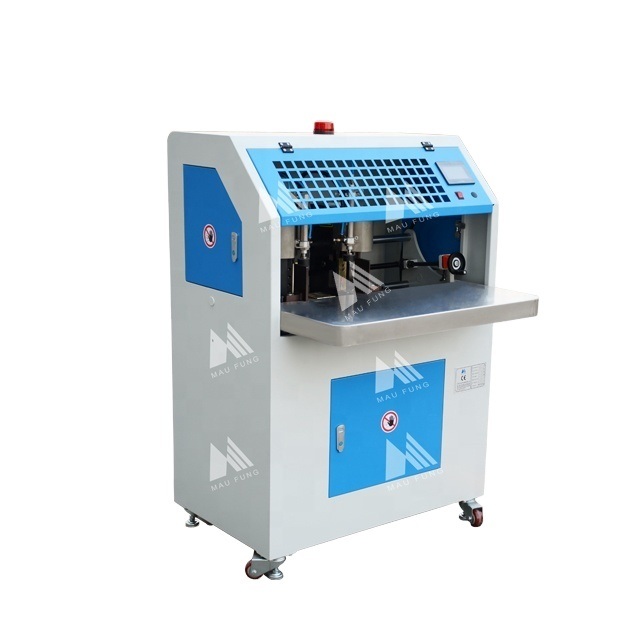

Name: Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size
Brand: DONGGUAN MAUFUNG MACHINERY CO.,LTD
Price: 8.00 USD
Availability: InStock

Casa Prodotti Macchina per incollare quaderni

Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size

Dettagli:

Luogo di origine:	Guangdong, Cina
Marca:	MAUFUNG

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1
Prezzo:	$8,000-9,000

Contatto

Descrizione di prodotto dettagliata

Energia:	1,5 kW	Voltaggio:	220V/50Hz
Dimensione:	9608701390mm	Peso:	220 kg
Tagliare lo spessore:	100 mm	Velocità di lavoro:	23 volte/min
Dimensione della carta min:	105*50 mm	Dimensione massima della carta:	490*450 mm
Dimensione della tavola di funzionamento:	860*380 mm	Pressione dell'aria:	6-8bar
Stampo ad angolo arrotondato:	1/8'',3/16'',1/4'',5/16'',3/8'',7/16'',1/2''	Grado automatico:	Automatico
Dimensioni della macchina:	9608701390mm	Peso netto:	220 kg
Modello n:	MF-DCM470
Evidenziare:	100mm Cutting Thickness Round Corner Cutting Machine , 23 times/min Working Speed Book Cutting Machine , 490*450mm Max Paper Size Notebook Cutting Machine

Pneumatic Double Head Angle Cutting Machine Book Round Corner Cutting Machine Notebook Cutting Machine

Product Specifications

Model No	MF-DCM470
Power Supply	220V /50HZ
Max Paper size	490*450mm
Min Paper size	105*50mm
Max cutting thickness	100mm
Round corner mold	1/8''，3/16''，1/4''，5/16''，3/8''，7/16''， 1/2''，9/16''，5/8''，3/4''，7/8''， 1'
Working Table size	860*380mm
Air pressure	6-8bar
Machine Dimensions (LWH)	9608701390mm
Working Speed	23 times/min
Weight	220kg

Pneumatic double head with max cutting 100mm thickness.

Touch screen for convenient operation.

Applications

MF-DCM470 Hydraulic Double-head Angle Cutting Machine applies to books, playing cards, invitations, trademarks, business cards and other printing and cutting round, triangle shape. This machine uses hydraulic system. It can cut two sides of angles one time with simple operation and high efficiency.
